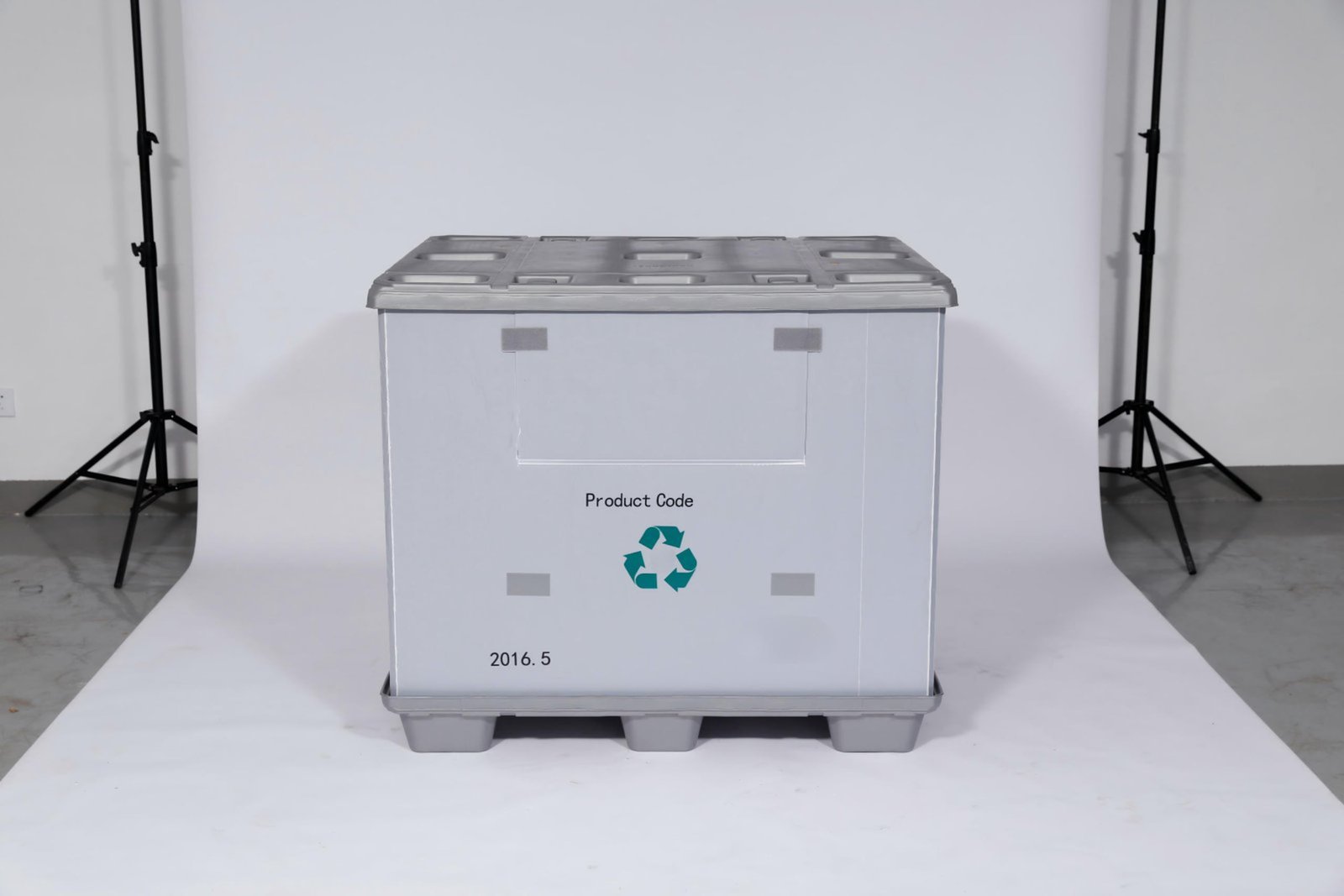

Pallet Sleeve Pack Containers
Reusable pallet sleeve pack containers combine a pallet base, protective sleeve and top structure into a returnable packaging system for precision parts, industrial components and supply chain handling.
Euro Plastic Pallet sleeve pack container series offers multiple blister box and plastic enclosure box configurations with standard specifications and custom packaging solutions for repeated handling and return logistics.
Pallet Sleeve Pack Container Series
Euro Plastic Pallet offers multiple blister-based and plastic enclosure box series. Each series can be presented with model-specific outer dimensions, inner dimensions, material, lock and steel tube information so buyers can compare configurations directly.

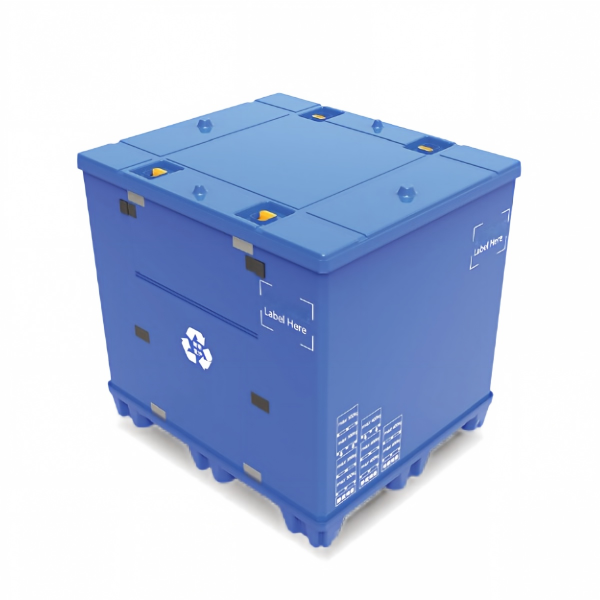

Double Blister Series
Double blister box solutions for reusable handling of industrial and precision components. Select the exact model by outer dimensions, inner dimensions, material, lock configuration and steel tube configuration.
Double Blister Series Specifications
Use the model-specific values confirmed in the approved product specification.
| Model | Outer (mm) | Inner (mm) | Material | Lock | Steel Tube |
|---|---|---|---|---|---|
| Series | Double Blister Series | ||||
| EUSL-07 | 1150×985 | 1100×935 | HDPE+PP | Yes | Yes |
| EUSL-08 | 1150×1150 | 1100×1100 | HDPE+PP | Yes | Yes |
| EUSL-09 | 1100×1000 | 1050×950 | HDPE+PP | Yes | Yes |
| EUSL-10 | 1100×1100 | 1050×1050 | HDPE+PP | Yes | Yes |
| EUSL-11 | 1200×800 | 1150×750 | HDPE+PP | Yes | Yes |
| EUSL-12 | 1220×1150 | 1145×1055 | HDPE+PP | Yes | No |
| EUSL-13 | 1200×1000 | 1135×935 | HDPE+PP | Yes | Yes |
| EUSL-14 | 1470×1150 | 1410×1090 | HDPE+PP | Yes | Yes |
| EUSL-15 | 1230×1030 | 1180×980 | HDPE+PP | Yes | Yes |
| EUSL-16 | 1210×1070 | 1150×1010 | HDPE+PP | Yes | Yes |
| EUSL-17 | 1050×1010 | 1000×960 | HDPE+PP | Yes | Yes |

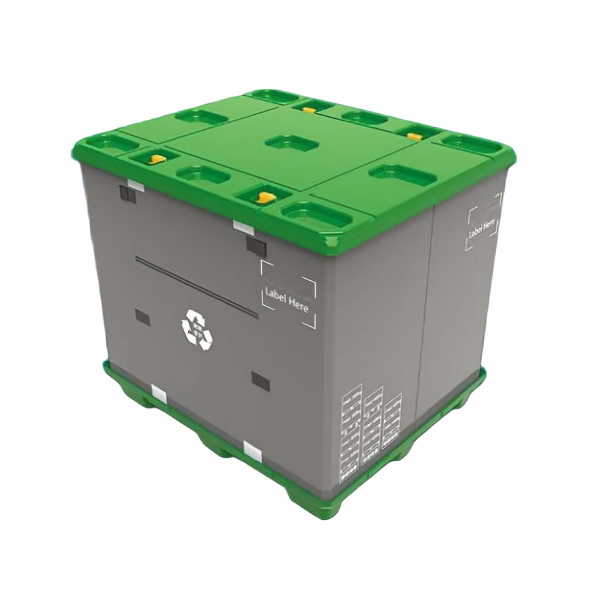

Double Blister Plane Series
Double blister plane box configurations for returnable packaging systems where organized loading and repeat handling are required.
Double Blister Plane Series Specifications
Use the model-specific values confirmed in the approved product specification.
| Model | Outer Dimensions (mm) | Inner Dimensions (mm) | Material | Lock | Steel Tube |
|---|---|---|---|---|---|
| Series | Double Blister Plane Series | ||||
| EUSL-19 | 1350*1150 | 1280*1080 | HDPE+PP | Yes | No |
| EUSL-20 | 1200*1000 | 1140*940 | HDPE+PP | Yes | No |
| EUSL-21 | 1470*1150 | 1400*1080 | HDPE+PP | Yes | No |
| EUSL-22 | 1055*1010 | 1010*970 | HDPE+PP | No | No |
| EUSL-23 | 1050*1010 | 1010*970 | HDPE+PP | No | No |
| EUSL-24 | 2070*1150 | 2000*1080 | HDPE+PP | Yes | No |
| EUSL-25 | 1600*1150 | 1530*1080 | HDPE+PP | Yes | No |

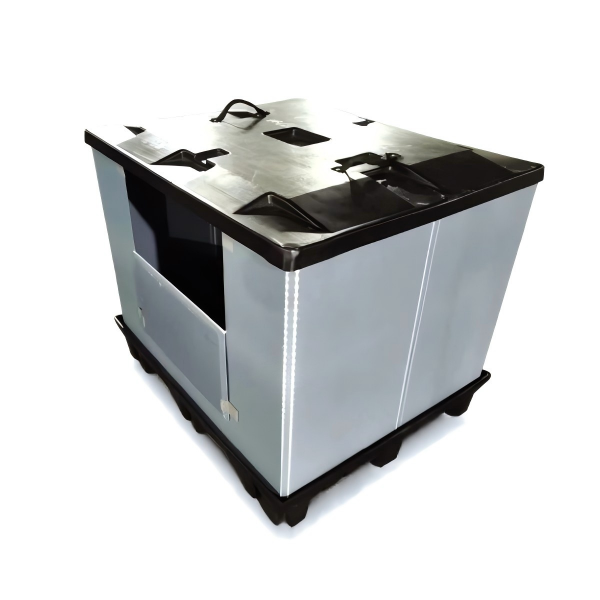

Double Layer Blister Series
Double layer blister box configurations for reusable industrial packaging and protected handling of components.
Double Layer Blister Series Specifications
Use the model-specific values confirmed in the approved product specification.
| Model | Outer Dimensions (mm) | Inner Dimensions (mm) | Material | Lock | Steel Tube |
|---|---|---|---|---|---|
| Series | Double Layer Blister Series | ||||
| EU114888 | 1210*1010 | 1135*935 | HDPE+PP | No | No |
| EU121810 | 1210*810 | 1130*730 | HDPE+PP | No | No |
| EU114666 | 1130*725 | 1060*655 | HDPE+PP | No | No |
| EU114555 | 1450*1130 | 1380*1060 | HDPE+PP | No | No |
| EU114999 | 1140*980 | 1070*910 | HDPE+PP | No | No |
| EU114111 | 1140*1140 | 1070*1070 | HDPE+PP | No | No |

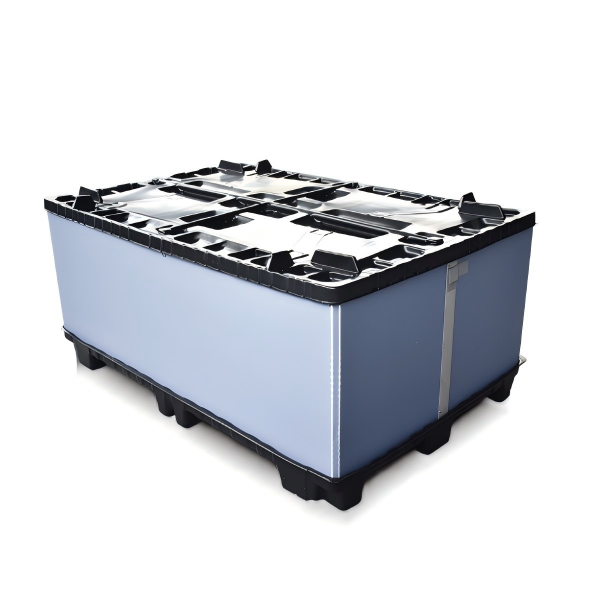

Single-Layer Blister Box Series
Single-layer blister box configurations for reusable packaging where the selected structure and dimensions match the product and handling process.
Single-Layer Blister Box Series Specifications
Use the model-specific values confirmed in the approved product specification.
| Model | Outer Dimensions (mm) | Inner Dimensions (mm) | Material | Lock | Steel Tube |
|---|---|---|---|---|---|
| Series | Single-Layer Blister Box Series | ||||
| EUJS-01 | 800*600 | 760*560 | HDPE+PP | Yes | No |
| EUJS-02 | 1240*1040 | 1200*1000 | HDPE+PP | No | No |
| EUJS-03 | 1200*1000 | 1160*960 | HDPE+PP | No | No |
| EUJS-04 | 1690*1145 | 1630*1080 | HDPE+PP | No | No |
| EUJS-05 | 1720*1145 | 1650*1080 | HDPE+PP | No | No |
| EUJS-06 | 1760*1145 | 1690*1080 | HDPE+PP | No | No |
| EUJS-07 | 1800*1145 | 1730*1080 | HDPE+PP | No | No |

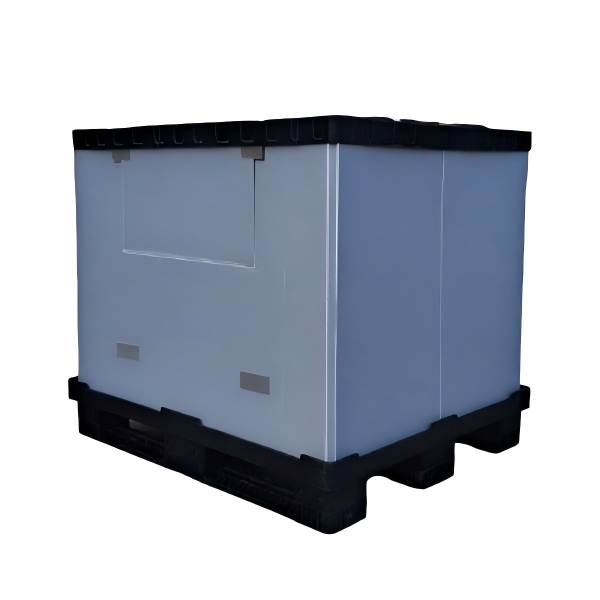

Plastic Enclosure Box — 3-Runner Base
Plastic enclosure box configurations with a 3-runner pallet base for returnable bulk handling and industrial logistics.
Plastic Enclosure Box — 3-Runner Base Specifications
Use the model-specific values confirmed in the approved product specification.
| Model | Outer Dimensions (mm) | Inner Dimensions (mm) | Material | Lock | Steel Tube |
|---|---|---|---|---|---|
| Series | Plastic Enclosure Box — 3-Runner Base | ||||
| EUWG-01 | 1200*1000 | 1130*930 | HDPE+PP | Yes | Yes |
| EUWG-02 | 1140*980 | 1070*910 | HDPE+PP | Yes | Yes |
| EUWG-03 | 1140*1140 | 1070*1070 | HDPE+PP | Yes | Yes |
| EUWG-04 | 1200*800 | 1130*730 | HDPE+PP | Yes | Yes |
| EUWG-05 | 1210*1010 | 1140*940 | HDPE+PP | Yes | Yes |

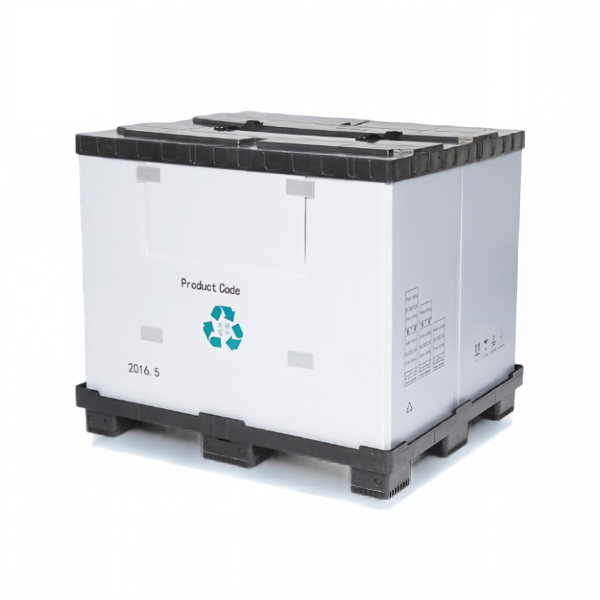

Plastic Enclosure Box — 9-Feet Base
Plastic enclosure box configurations with a 9-feet base for reusable handling and space-efficient return logistics.
Plastic Enclosure Box — 9-Feet Base Specifications
Use the model-specific values confirmed in the approved product specification.
| Model | Outer Dimensions (mm) | Inner Dimensions (mm) | Material | Lock | Steel Tube |
|---|---|---|---|---|---|
| Series | Plastic Enclosure Box — 9-Feet Base | ||||
| EUSN-01 | 1200*1000 | 1130*930 | HDPE+PP | Yes | Yes |
| EUSN-02 | 1140*980 | 1070*910 | HDPE+PP | Yes | Yes |
| EUSN-03 | 1140*1140 | 1070*1070 | HDPE+PP | Yes | Yes |
| EUSN-04 | 1200*800 | 1130*730 | HDPE+PP | Yes | Yes |
Reusable Returnable Packaging Built for Reverse Logistics
Reusable and returnable sleeve pack containers can support more than 100 reuse cycles while helping reduce packaging costs by up to 50% in suitable closed-loop applications.

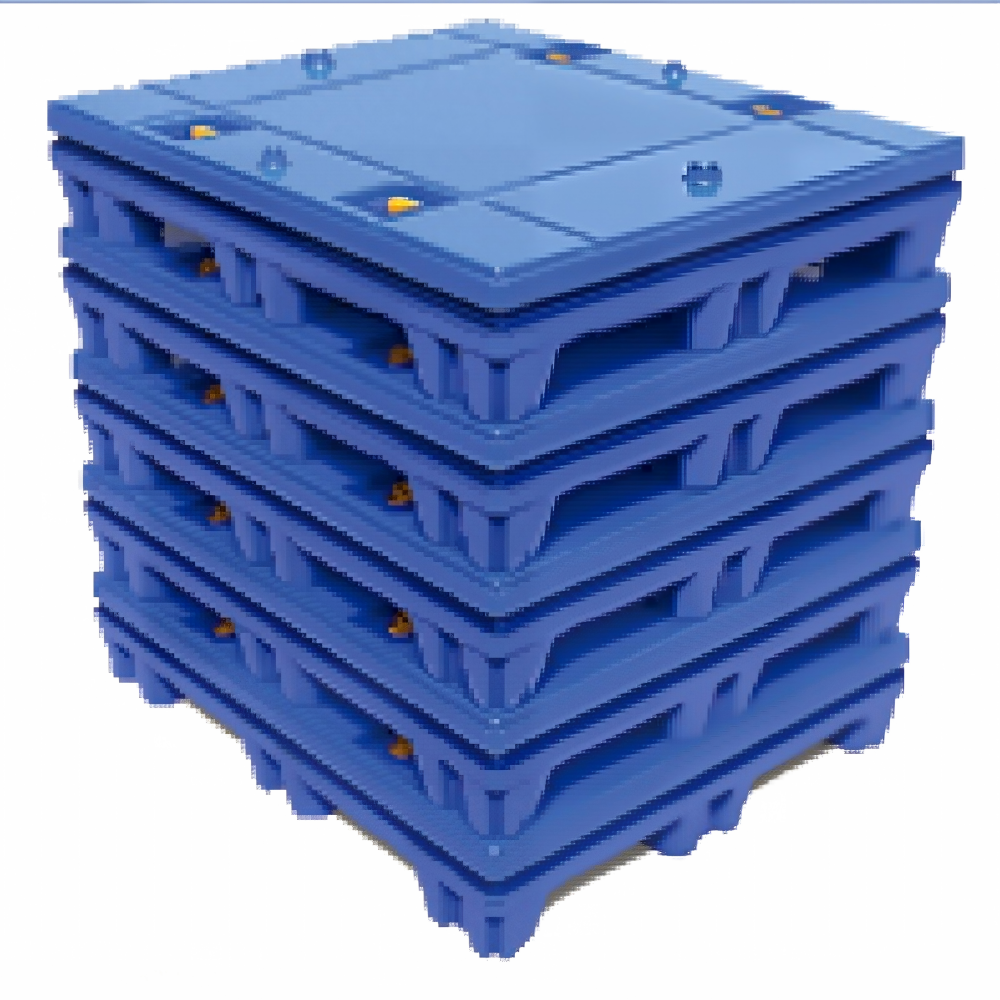

Complete Set Return Ratio 1:5
Return the pallet, sleeve, and cover as a complete set to reduce reverse logistics volume.

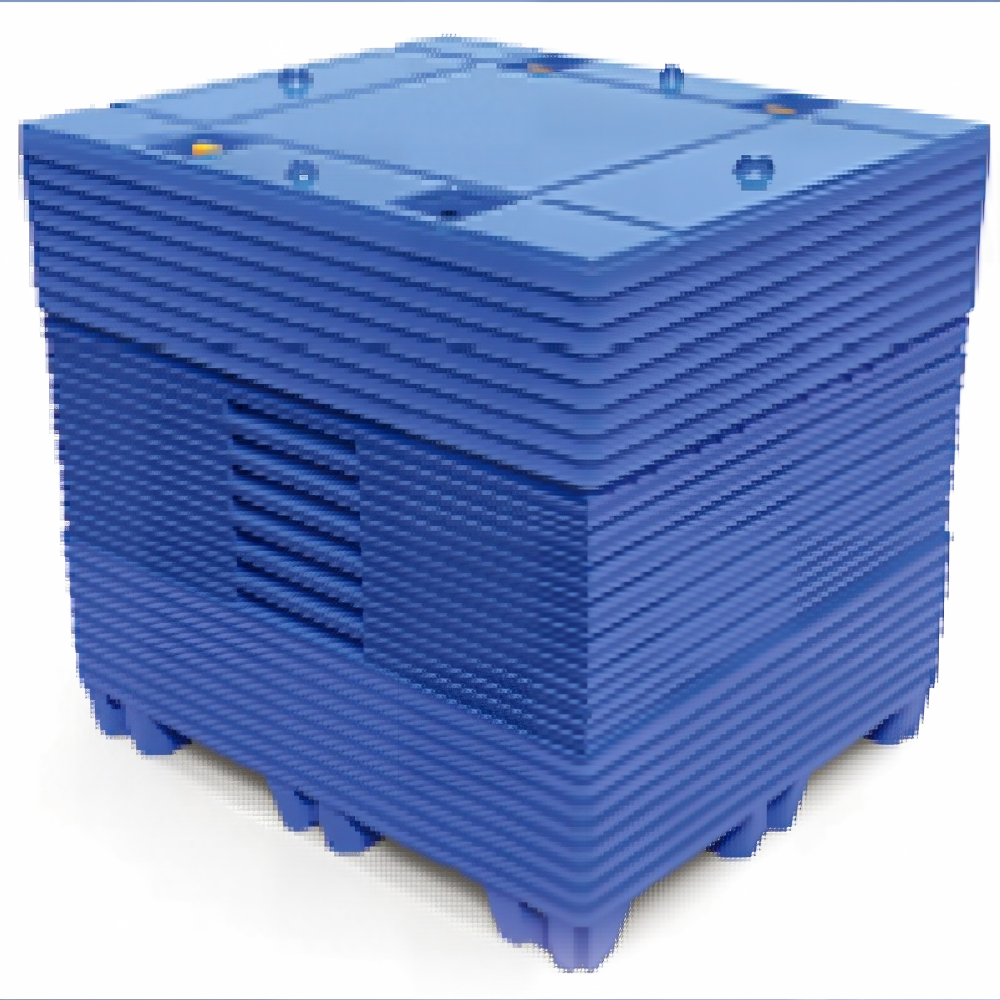

Separated Return Ratio 1:8
Separate the components for return to make better use of transport and warehouse space.

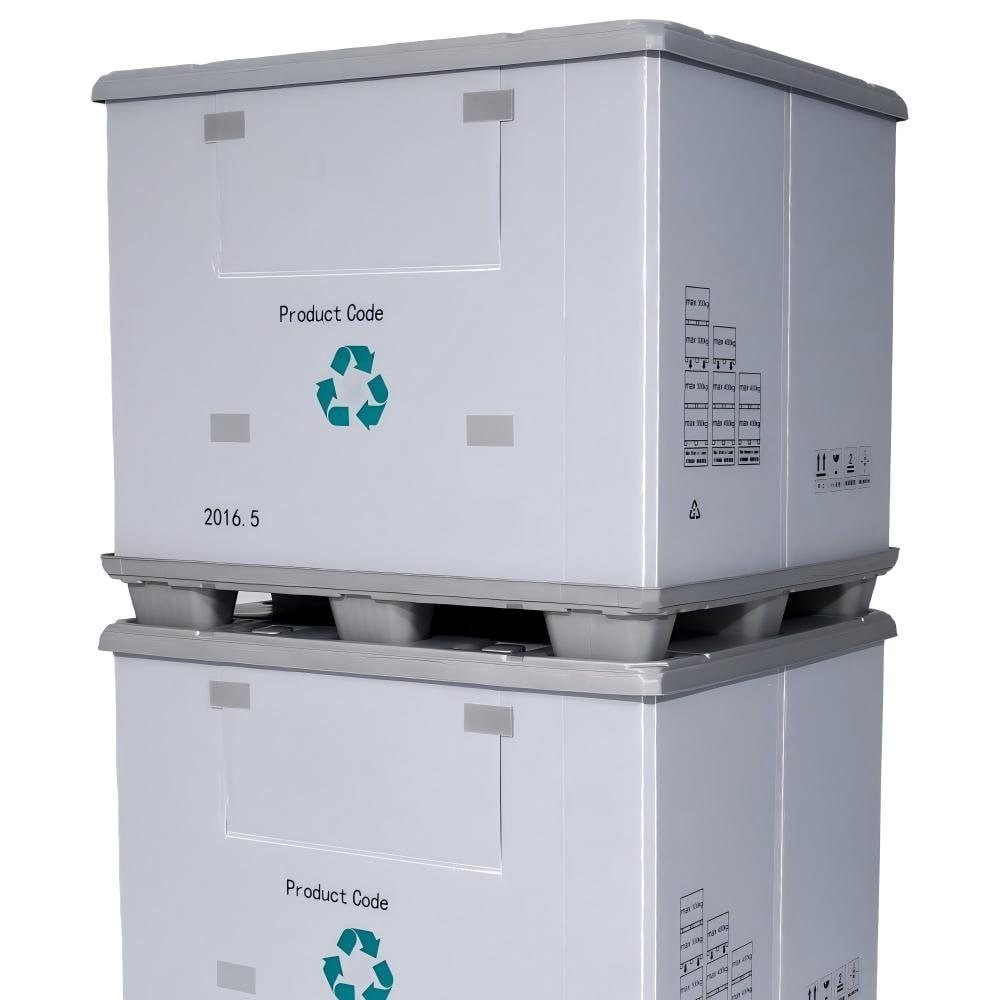

Stackable
Ssupport double boxes stacking.

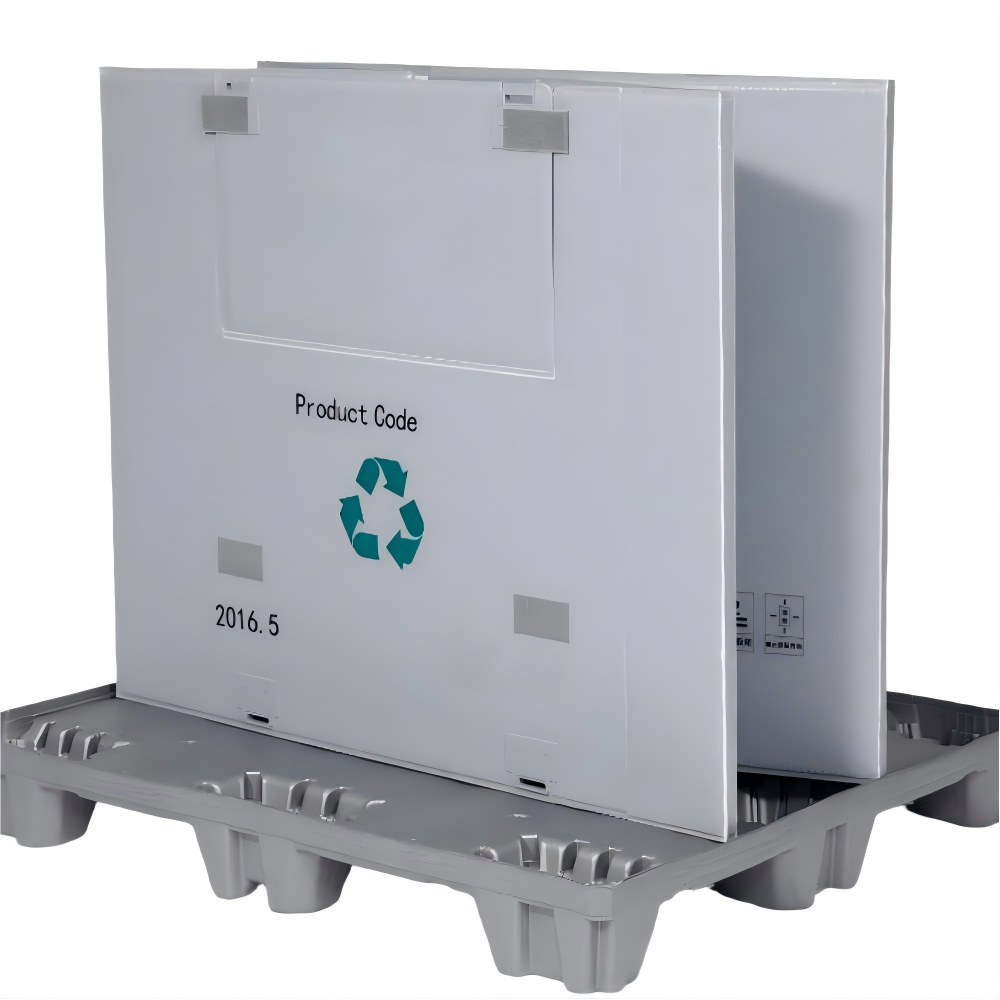

Quick Setup
The pallet, sleeve, and top cover can be assembled as a reusable packaging system for repeated handling.
Designed for reusable returnable packaging, the system is intended for repeated industrial use where packaging recovery, empty return space, and total packaging cost matter.
Build the Sleeve Pack Around Your Product
Select the base, sleeve, EU box, and inner lining according to your product shape, protection requirements, handling method, and packaging workflow.
Injection-Molded Pallet Base & Custom Dunnage

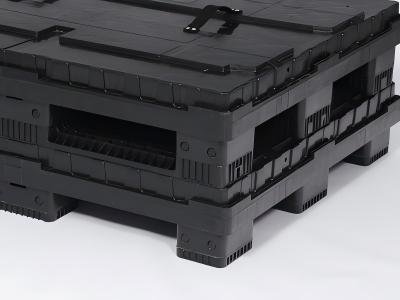

Injection-Molded Pallet Base
Injection-molded options include 9-leg bases and Chuanzi-style 3-runner bases. The base can be designed for stacking, nesting, and forklift handling.

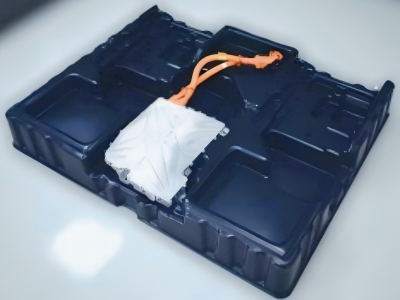

Custom-Molded Base Dunnage System
HDPE or ABS can be selected for custom-molded base dunnage. Design options include inverter blister trays, module blister trays, and other product-specific blister trays.
PP Sleeve Panels & Custom Configurations

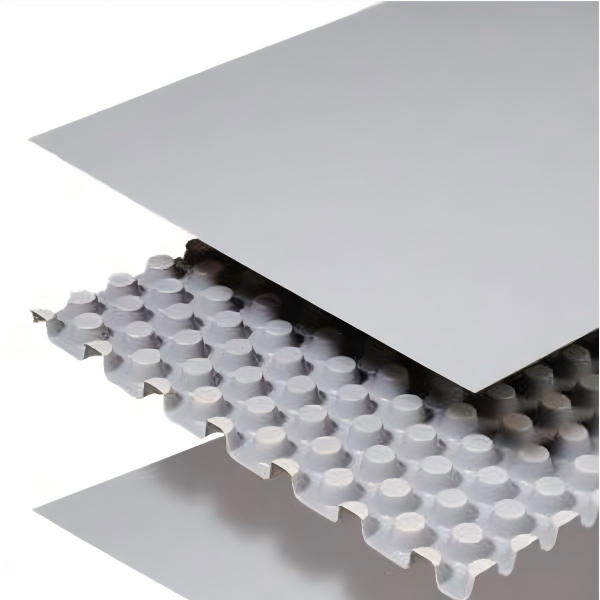

PP & Board Options
Sleeve options include PP board, star-grid board, and honeycomb board. Anti-static and conductive configurations are also available.

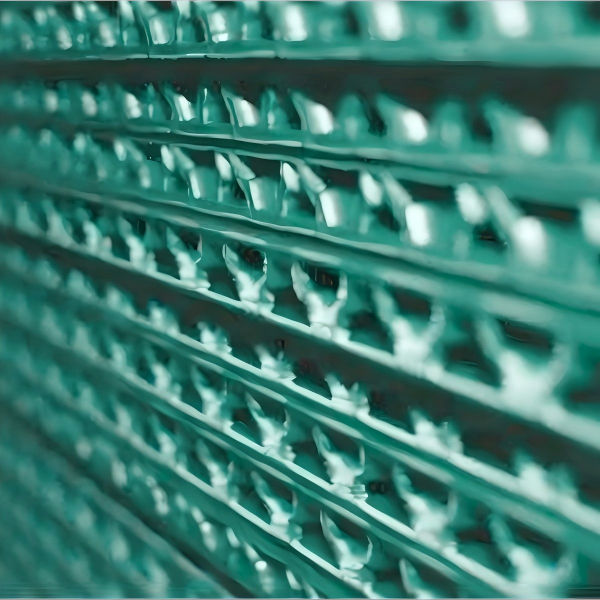

Logo, Color & Thickness
Logo and color can be customized. Sleeve thickness ranges from 3–10 mm, with board weight options of 3000–4500 gsm.

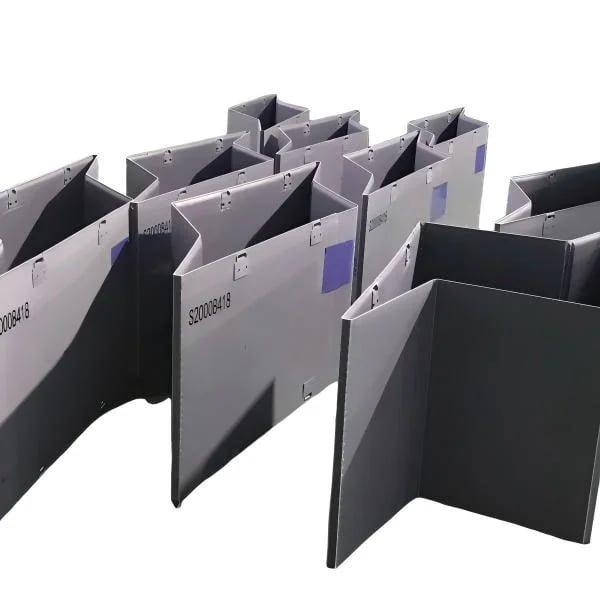

Folding & Opening Options
Three-fold, two-fold, and side-opening configurations can be selected according to loading, unloading, and access requirements.
HDPE or PP EU Box with Custom Covers

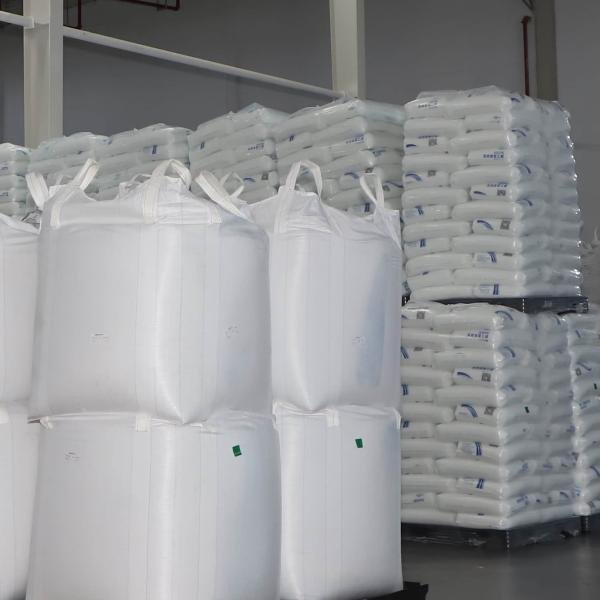

HDPE or PP Material
EU box components can be produced using high-quality HDPE or PP according to the requirements of the packaging system.

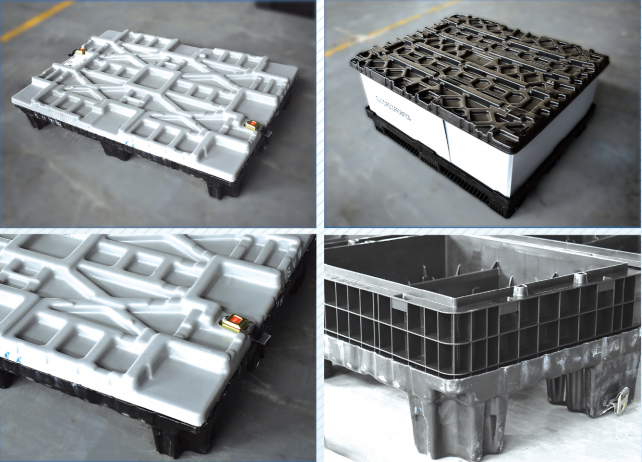

Four Cover Types
Top and bottom covers are available in four types: die-cast, injection-molded, thermoformed, and double-layer thermoformed.

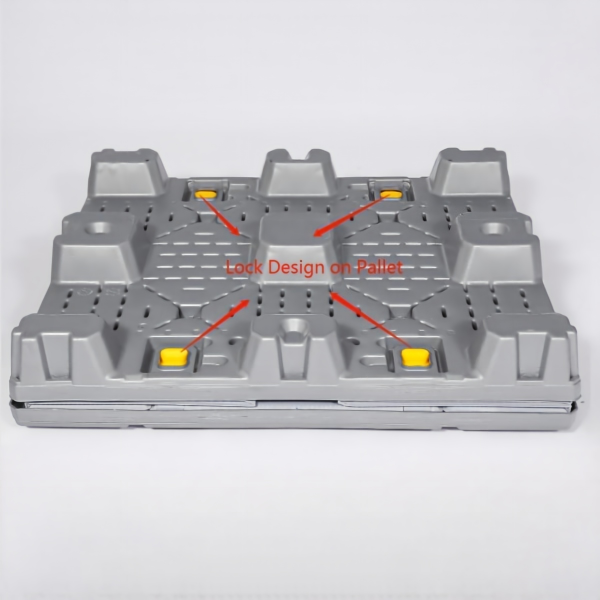

Lock Design
Cover construction can be selected according to the customer's load requirements, product type, handling conditions, and intended use.

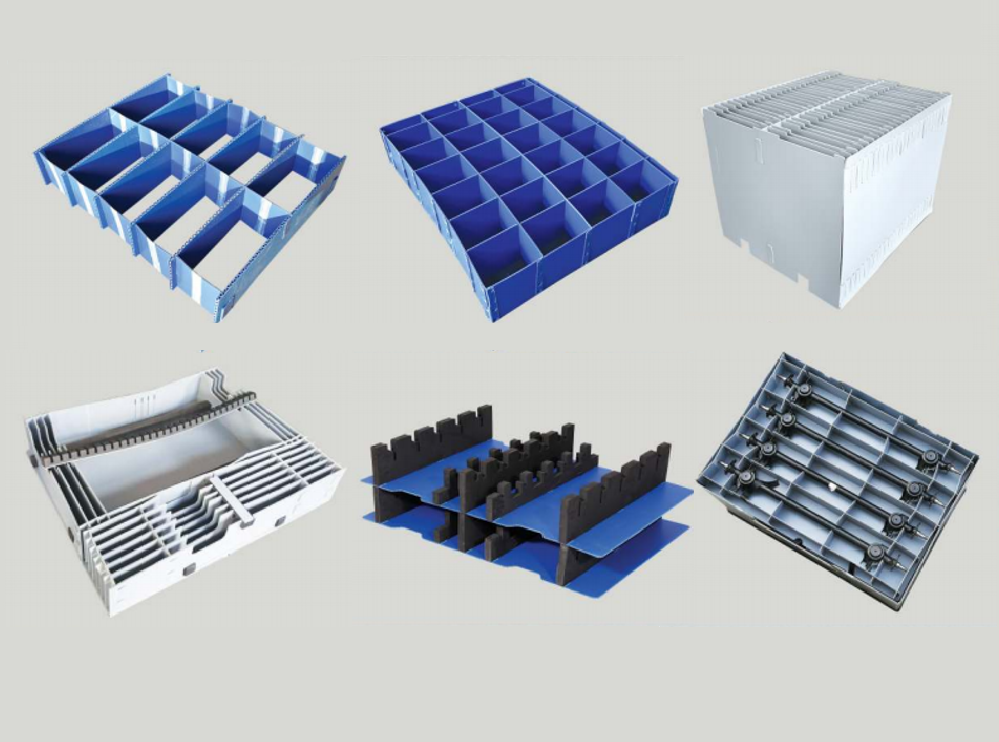

Product-Specific Inner Lining Options
Honeycomb Board Knife-Card Lining
Honeycomb board can be die-cut into internal dividers and positioning structures for product separation.
Hollow Board Knife-Card Lining
Hollow board can be die-cut into internal structures according to the product shape and separation requirements.
EVA Lining
EVA lining can be customized for products that require a softer internal contact surface and additional positioning support.
Custom Internal Layout
Lining structures can be arranged around the product shape, separation requirements, and packaging workflow.
Custom Sleeve Pack OEM / ODM Projects
Euro Plastic Pallet is a professional sleeve pack OEM/ODM supplier with more than 20 years of manufacturing experience. We develop packaging structures around product dimensions, protection requirements, handling methods, and return logistics.

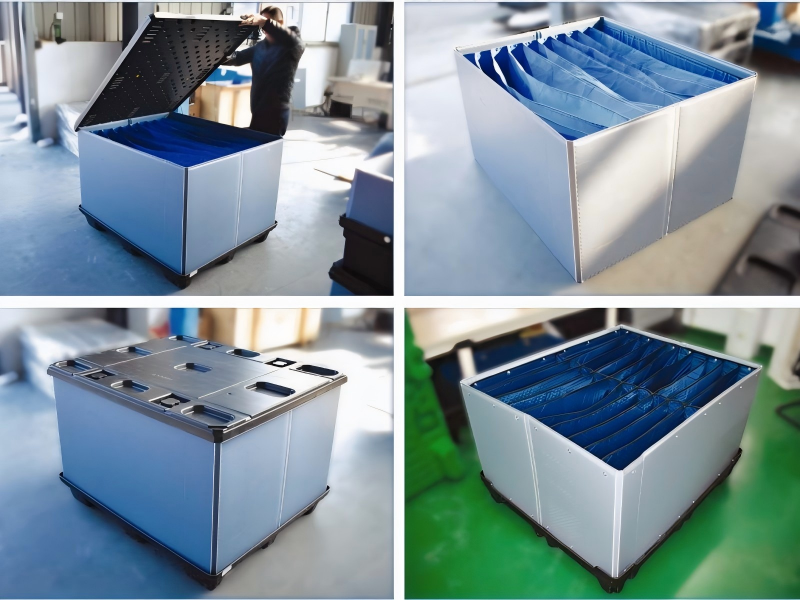

Cloth Bag Lining Project
A custom cloth bag lining can hold precision components separately to reduce friction between parts. The soft fabric structure provides a flexible contact surface for products that need additional protection during repeated handling.

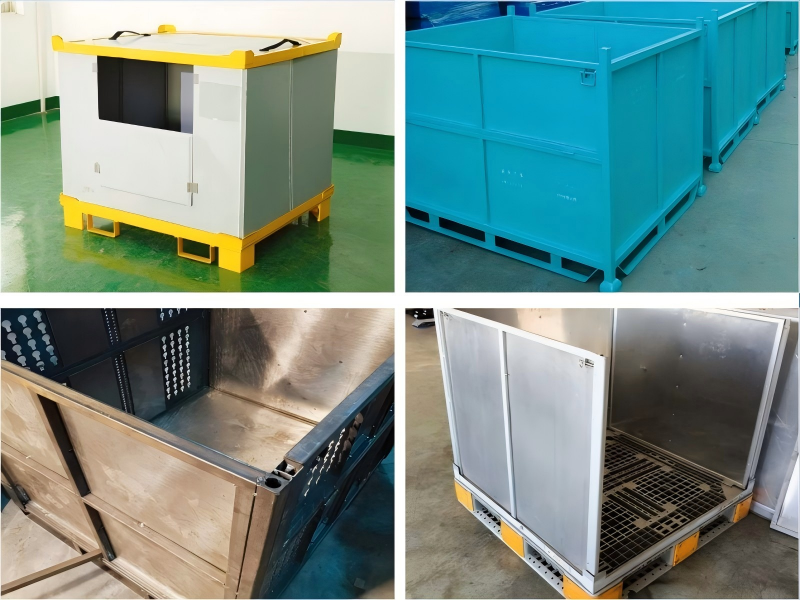

Custom Metal Box Project
Custom metal box structures can be integrated into a reusable packaging solution where the product requires a different load-bearing or enclosure structure.

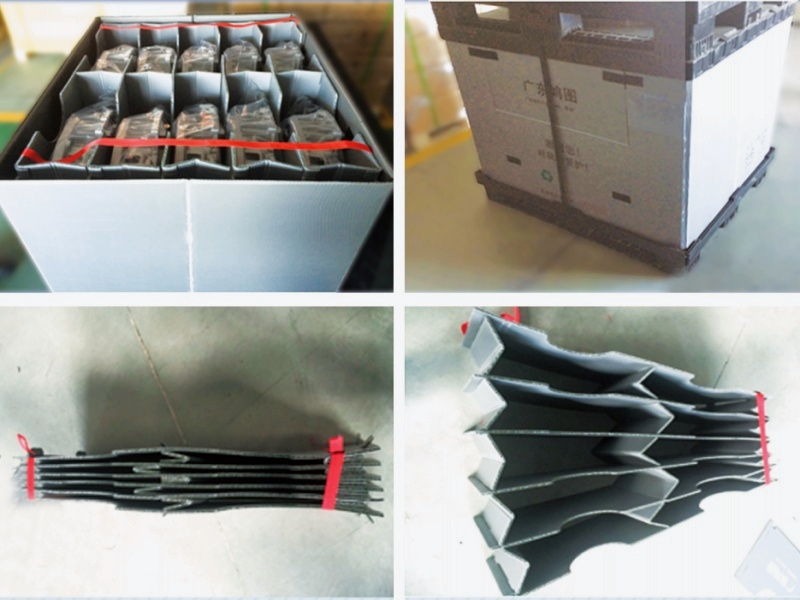

Cylinder Head Project
Cylinder head packaging can use customized internal positioning and protective lining to keep each component separated and supported during repeated transport between manufacturing locations.
Reusable Sleeve Pack Containers for Industrial Applications
Different product types require different protection, separation, handling, and return logistics configurations.

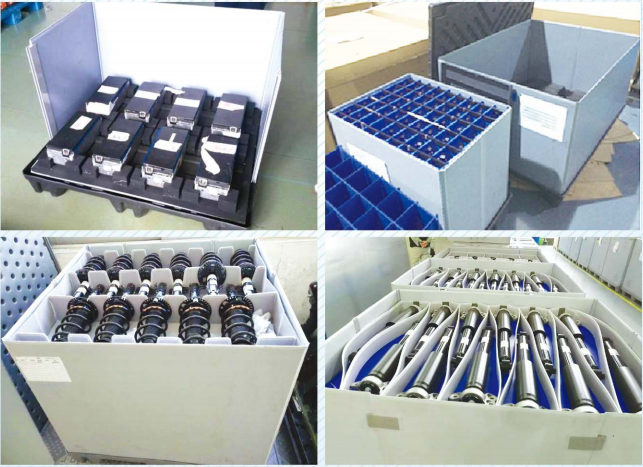

Precision Components & Automotive Parts
Custom inner linings, cloth bags, dunnage trays, and separated compartments can be arranged around precision components to reduce movement and contact during repeated handling.
Industrial Manufacturing
Reusable pallet sleeve pack containers can organize industrial components, sub-assemblies, and production materials between workstations, suppliers, and manufacturing facilities.
Return Logistics
Collapsible and separable structures help reduce empty return volume and support repeated movement between suppliers, factories, warehouses, and distribution locations.
Warehousing & Distribution
Stackable packaging systems help organize bulk components and recurring material flows while making use of available warehouse space.
Electronics & Electrical Components
Anti-static and conductive sleeve or lining options can be considered for packaging systems used with sensitive electronic and electrical components.
Machinery & Heavy Components
Custom bases, structural sleeves, inner dunnage, and protective covers can be configured around larger industrial components and specific handling workflows.

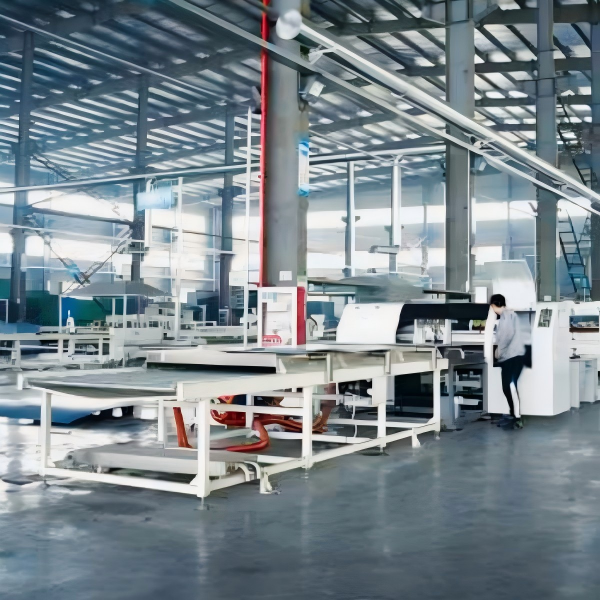

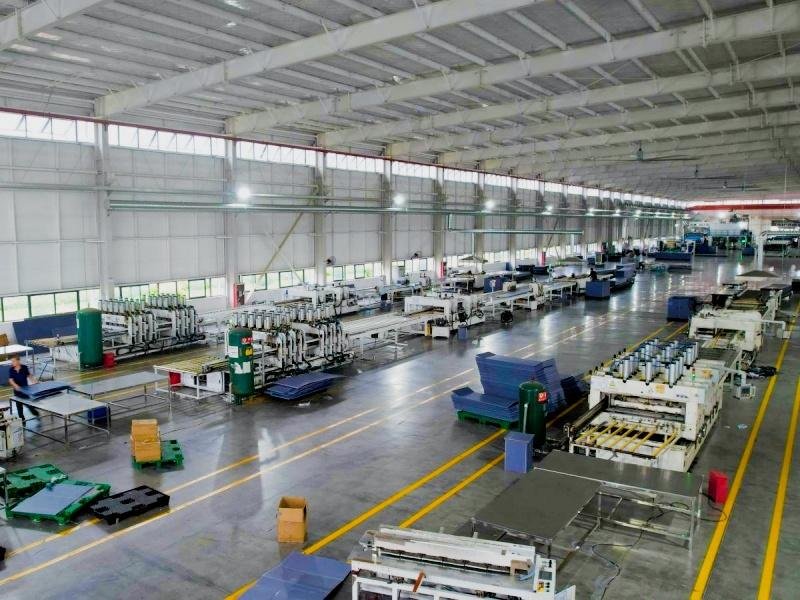

Manufacturing Capability for Custom Sleeve Pack Projects
Euro Plastic Pallet combines plastic injection molding, custom structural development, and packaging assembly capabilities for reusable sleeve pack projects.
From pallet bases and plastic components to sleeves, dunnage, inner linings, and customized packaging structures, production can be organized around the approved project specification.

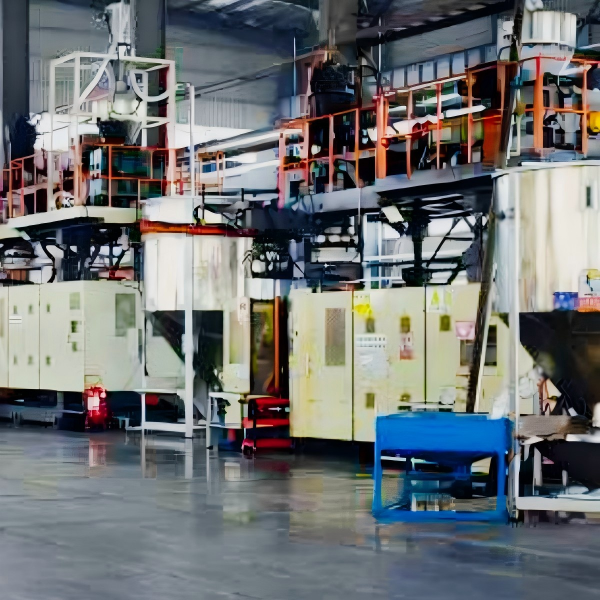

Injection Molding
Plastic components and pallet bases produced through injection molding.
Custom Production
Custom structures developed around product dimensions and packaging requirements.
Packaging Assembly
Sleeve, lining, dunnage, and other components assembled according to project requirements.

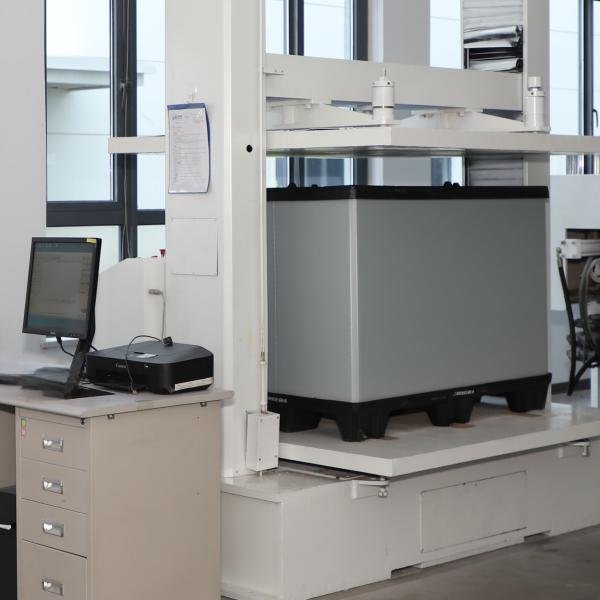

Quality Inspection
Production checks focus on the approved dimensions, structure, materials, and project requirements.
Quality Control Throughout Production
Production and inspection can be organized around the final approved specification and the quality points required for each custom project.
Dimensional Control
Check dimensions against the approved specification.
Material Control
Verify the selected material and project requirements.
Structural Inspection
Check structural features, assembly, and handling components.
Shipment Check
Confirm packaging and shipment condition before dispatch.

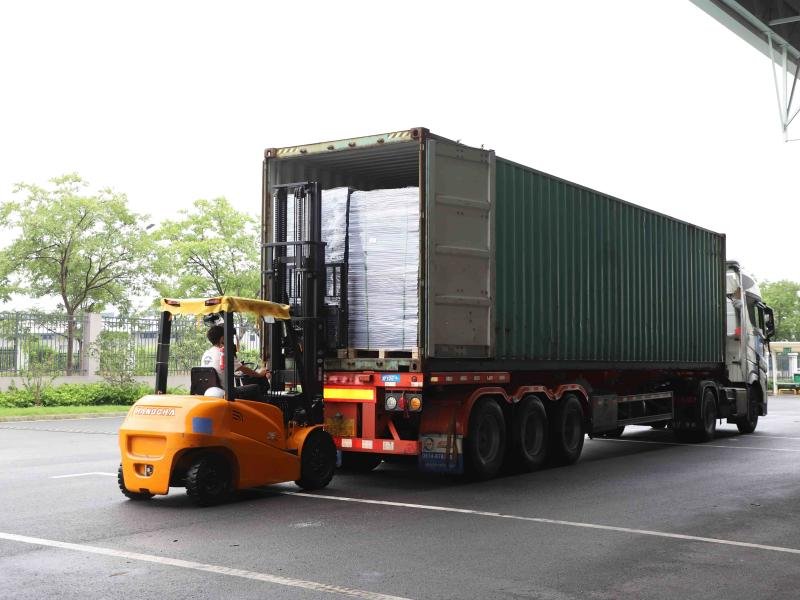

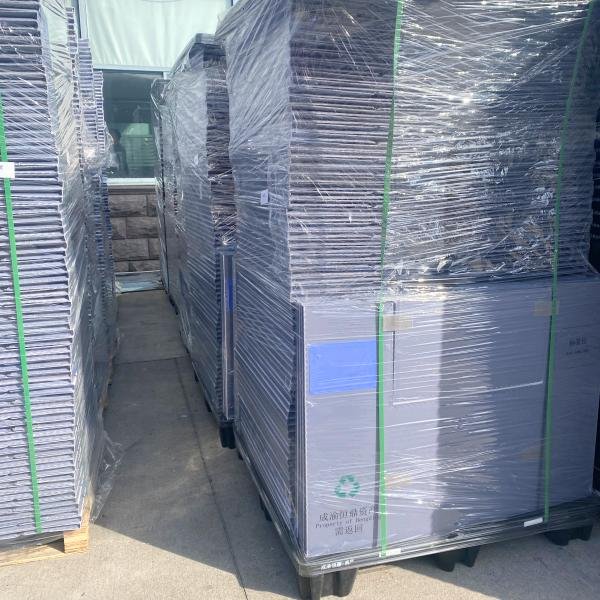

Prepared for International B2B Delivery
Finished sleeve pack components can be packed according to the approved shipment arrangement to support international transportation and handling.
Shipment configuration can be discussed according to the order quantity, component structure, destination, and logistics requirements.
Custom Sleeve Pack Packaging for Your Product
Euro Plastic Pallet develops reusable sleeve pack systems around your product dimensions, protection requirements, handling equipment, and return logistics.
Base, sleeve, EU box, dunnage, lining, color, logo, thickness, and access configuration can be discussed as part of an OEM/ODM project.
Customization Scope
- ✓ Custom pallet base and dunnage
- ✓ PP, HDPE, ABS and selected board structures
- ✓ Product-specific inner lining and separation
- ✓ Sleeve thickness, folding, opening, color and logo
- ✓ EU box cover and structural options
From Product Requirements to Custom Packaging
The project starts with the product and handling requirements, then moves through structure design, specification confirmation, production, and shipment.
Share Requirements
Provide product dimensions, application, handling method, packaging requirements, and estimated quantity.
Develop Structure
Evaluate the base, sleeve, EU box, dunnage, inner lining, material, and access configuration.
Confirm Specification
Confirm the final structure, dimensions, materials, customization details, packaging, and commercial requirements.
Production & Shipment
Production follows the approved specification before inspection, packing, and shipment.
Build a Sleeve Pack System Around Your Product
Tell us your product type, dimensions, protection requirements, handling equipment, packaging structure, and estimated quantity. We can evaluate a suitable reusable returnable packaging configuration.
Pallet Sleeve Pack Container FAQ
Common questions about sleeve pack containers, return ratios, product series, materials, and customization.
What is a pallet sleeve pack container?
A pallet sleeve pack container is a reusable bulk packaging system built from a pallet sleeve base, a foldable or enclosure-style sleeve, and a top cover or lid. The sleeve creates the container walls around the load, while the pallet base supports handling and the top structure helps protect the contents.
What series of sleeve pack containers are available?
Euro Plastic Pallet offers Double Blister Series, Double Blister Plane Series, Double Layer Blister Series, Single-Layer Blister Box Series, Plastic Enclosure Box with 3-Runner Base, and Plastic Enclosure Box with 9-Feet Base. Each series has multiple models with different specifications.
What is the return ratio for sleeve pack containers?
The collapsible system achieves a 1:5 return ratio when returned as a complete set, and up to 1:8 when components are disassembled. This enables space-efficient empty returns and cost-effective reverse logistics.
What materials are sleeve pack containers made from?
Sleeve pack containers are made from HDPE or PP materials. They are non-toxic, odorless, and can meet FDA and EU 10/2011 compliance requirements for food-contact applications when specified.
Can sleeve pack containers be customized?
Yes. Custom sleeve pack containers can be discussed around required dimensions, sleeve type (blister or enclosure), base design (3-runner or 9-feet), material, color, logo, identification, lock and steel tube configuration, and application-specific requirements.
Are sleeve pack containers stackable?
Yes, sleeve pack containers are designed for stacking both when loaded and empty. Allowable stacking performance depends on the specific structure, load, and application. Always confirm the rated performance of the selected model.
What is the difference between blister box and enclosure box?
Blister boxes feature a molded, contoured sleeve that wraps around products for secure positioning. Enclosure boxes use flat-panel walls that fold or assemble around the load. The choice depends on product shape, protection needs, and handling process.
What base options are available for sleeve pack containers?
Euro Plastic Pallet offers 3-Runner Base and 9-Feet Base configurations for plastic enclosure boxes. The base design affects forklift access, stacking stability, and compatibility with warehouse equipment.
How do I choose the right sleeve pack container?
Start with the product and handling process. Then compare outer and inner dimensions, required capacity, sleeve type, base design, material, stacking conditions, handling equipment, return logistics needs, and any product-contact requirements.
Can sleeve pack containers be used in cold-chain logistics?
Yes, suitable sleeve pack containers can be used in cold-chain and refrigerated applications. The material, sleeve construction, stacking configuration, and operating temperature should be confirmed for the selected model and process.
Are sleeve pack containers reusable?
Yes. Reusable plastic construction is one of the main advantages of sleeve pack containers. Actual service life depends on material, structure, load, handling conditions, cleaning, and maintenance.
How does the factory inspection work for sleeve pack orders?
Factory inspection covers product dimensions, sleeve construction, material, color, structural features, and packaging condition. Buyers can define key acceptance points before production and shipment to ensure the containers meet their operational requirements.
Have a specific requirement for a pallet sleeve pack container?
